A non intelligent language learner

Launch the applet

Introduction

This Java applet is an implementation of a non intelligent language learner based on many of its predecessors, such as NIALL. The way in which it 'learns' is similar to the way the Monty PircBot works (although the PircBot version is more advanced, offering weighted edges and other mechanisms for generating sentences). It looks at the things that you (the User) says and remembers which words can start a sentence, which words can end a sentence and which words can follow other words.

When you start to speak to Monty, you will notice that a directed graph forms in the display area. This shows a dynamic graphical representation of the data structures inside the applet. A force-directed drawing algorithm is constantly applied to the graph to keep its layout reasonable.

Remember, Monty can only learn from what you teach it! You will notice the best effects if you try to avoid entering very short sentences.

How does it work?

When creating a sentence, Monty starts at the [start] node. This simple model then picks a random edge that emanates from the [start] node. The node at the other end of the chosen edge becomes the first word of the sentence. We then visit a node via another randomly chosen edge, and so on, until we reach the [end] node.

An example

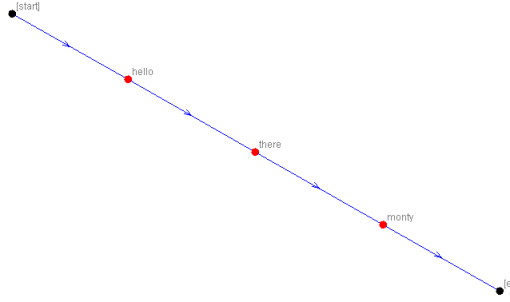

If we say hello there monty then Monty will learn that hello can start a sentence and that monty can end a sentence. It will also be aware that the word monty can follow there and there can follow hello

graph1

At this point, Monty can only reply with hello there monty because this is the only thing that it has been taught. Let's now suppose that we say there are two dogs then Monty learns that dog can follow two which in turn can follow are. are can also follow there. Now Monty is now aware that it can start a sentence with either hello or there. Note also that Monty now knows that the word there can be followed by either monty or are. Already, a random path taken from [start] to [end] through the directed graph can be used to produce new responses that we ourselves have not actually said, for example hello there are two dogs or there monty

graph2

As you enter more sentences into Monty, you will see a denser graph start to form, thereby providing a lot more scope for generating 'unseen' phrases.

graph3

If you want to put some similar sentence-generator into your own Java programs, you could implement this (it's quite simple if you have a basic knowledge of Java data structures), or you could use the JMegaHal package, which is more effective and its already written for you! JMegaHal uses 4th-order Markov chains instead of the single order ones used by this java applet, which means you are likely to get "better" responses and punctuation will also be mimicked.

Licensing

This software product is OSI Certified Open Source Software, available under the GNU General Public License (GPL). Since the GPL may be too restrictive for use in proprietary applications, a commercial license is also provided.

Purchase a commercial license for this software.
